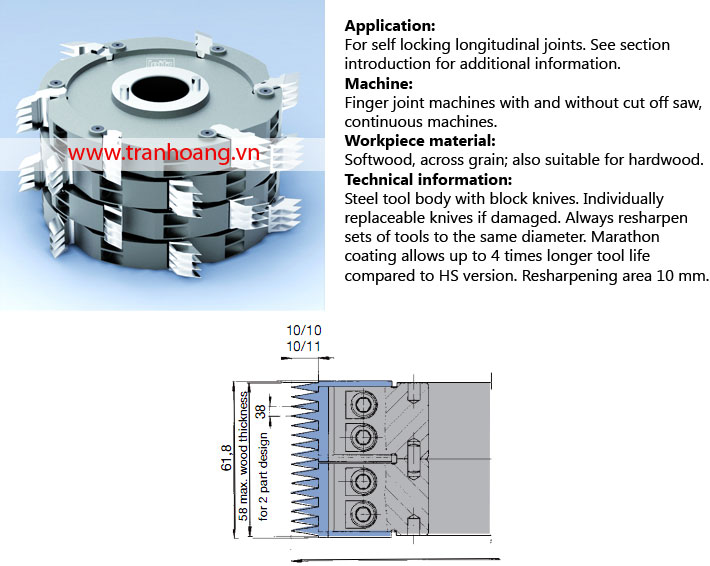

| Minifinger cutterhead with replaceable HW knives TH-285 |
|
|
| |
| Thông số kỹ thuật: |
ZL 10/10 and 10/11 mm, TG 3.8 mm.
WM 620-2
D
mm |
SB
mm |
BO
mm |
ND
mm |
Z |
TG |
ZA
PCS |
nmax
min-1 |
ID
ZL 10/10 |
|
ID
ZL 10/11 |
|
| 160 |
31.4 |
50 |
30.4 |
2/2 |
3.8 |
8 |
8 000 |
022730 |
|
022731 |
|
| 250 |
31.4 |
50 |
30.4 |
3/3 |
3.8 |
8 |
4 500 |
022732 |
|
022733 |
|
Spare knives
| Cut off saws |
Tip gap |
Profile knife |
ZL
mm |
TG |
ZA
PCS |
ID
2 |
|
ID
3 |
|
| without |
standard |
right |
10/10 |
3.8 |
4 |
611300 |
|
611350 |
|
| without |
standard |
left |
10/10 |
3.8 |
4 |
611302 |
|
611352 |
|
| with |
standard |
right |
10/11 |
3.8 |
4 |
611304 |
|
611354 |
|
| with |
standard |
left |
10/11 |
3.8 |
4 |
611306 |
|
611356 |
|
Table to determine the quantity of cutters for a given wood thickness and cutting width
Minifinger joint cutterhead with pitch 3.8 mm. Finger length 10 and 10/11 mm; 15 and 15/16.5 mm
Minifinger cutterhead with a pitch of 3.8mm
Finger length
10 and 10/11mm
15 and 15/15.6mm |
|
| SB |
31.1mm |
| Hub |
30.4mm |
| ZA |
Tooth row 8 |
| Wood thickness |
Quantity of cutterheads |
| 28 |
1 |
| 58 |
2 |
| 89 |
3 |
| 119 |
4 |
| 150 |
5 |
| 180 |
6 |
| 210 |
7 |
| 241 |
8 |
| 271 |
9 |
| 302 |
10 |
| 332 |
11 |
| 362 |
12 |
|
|
|
