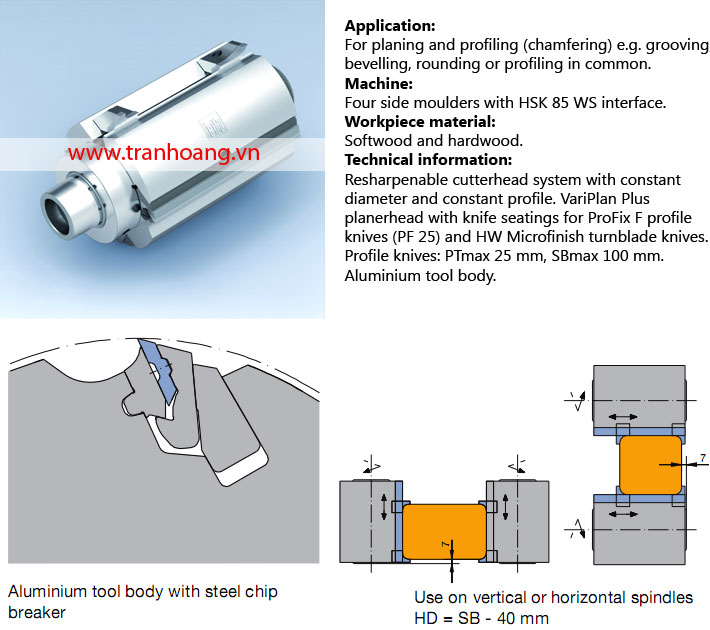

| Planerhead VariPlan Plus/ProFix F system PF 25 TH-231 |
|
|
| |
| Thông số kỹ thuật: |
| mm |
A
mm |
Z |
nmax
min-1 |
DRI |
BEM |
ID |
|
| 125 |
130 |
26 |
2+2 |
10 000 |
LL |
left/ on bottom |
131108 |
|
| 125 |
130 |
26 |
2+2 |
10 000 |
RL |
right/ on top |
131109 |
|
| 125 |
170 |
26 |
2+2 |
10 000 |
LL |
left/ on bottom |
131110 |
|
| 125 |
170 |
26 |
2+2 |
10 000 |
RL |
right/ on top |
131111 |
|
| 125 |
240 |
26 |
2+2 |
10 000 |
LL |
on bottom |
131112 |
|
| 125 |
240 |
26 |
2+2 |
10 000 |
RL |
on top |
131113 |
|
| 140 |
310 |
26 |
2+2 |
8 000 |
LL |
on bottom |
131114 |
|
| 140 |
310 |
26 |
2+2 |
8 000 |
RL |
on top |
131115 |
|
Further knife types, dimensions and inch dimensions on request. Servicing with spare parts only by the manufacturer. VariPlan Plus spare knives in section 9 Knives and spare parts.
Spare knives
| BEZ |
SB
mm |
ABM
mm |
QAL |
ID
LL |
|
ID
RL |
|
| ProFix F knife PF 25 R=3 |
25 |
R=3 |
HW |
011041 |
|
011042 |
|
| ProFix F knife PF 25 R=5 |
25 |
R=5 |
HW |
011043 |
|
011044 |
|
| ProFix F knife PF 25 R=8 |
25 |
R=8 |
HW |
011045 |
|
011046 |
|
| ProFix F knife PF 25 R=10 |
25 |
R=10 |
HW |
011047 |
|
011048 |
|
| ProFix F knife PF 25 Bevel 45° |
25 |
Bevel 45° |
HW |
011051 |
|
011052 |
|
Further profile knives on request.
Spare parts
| BEZ |
ABM
mm |
ID |
|
| Allen Key |
SW 4 |
005445 |
|
| Allen Key |
SW 5 |
005452 |
|
| Variant |
Description |
|
|
| 110 000 |
Planerhead without knives |
|
|
| 110 001 |
Planerhead with HS Microfinish turnblade knives |
|
|
| 110 002 |
Planerhead with HW Microfinish turnblade knives |
|
|
| 110 003 |
Planerhead with HW Integral turnblade knives |
|
|
|
|
|
